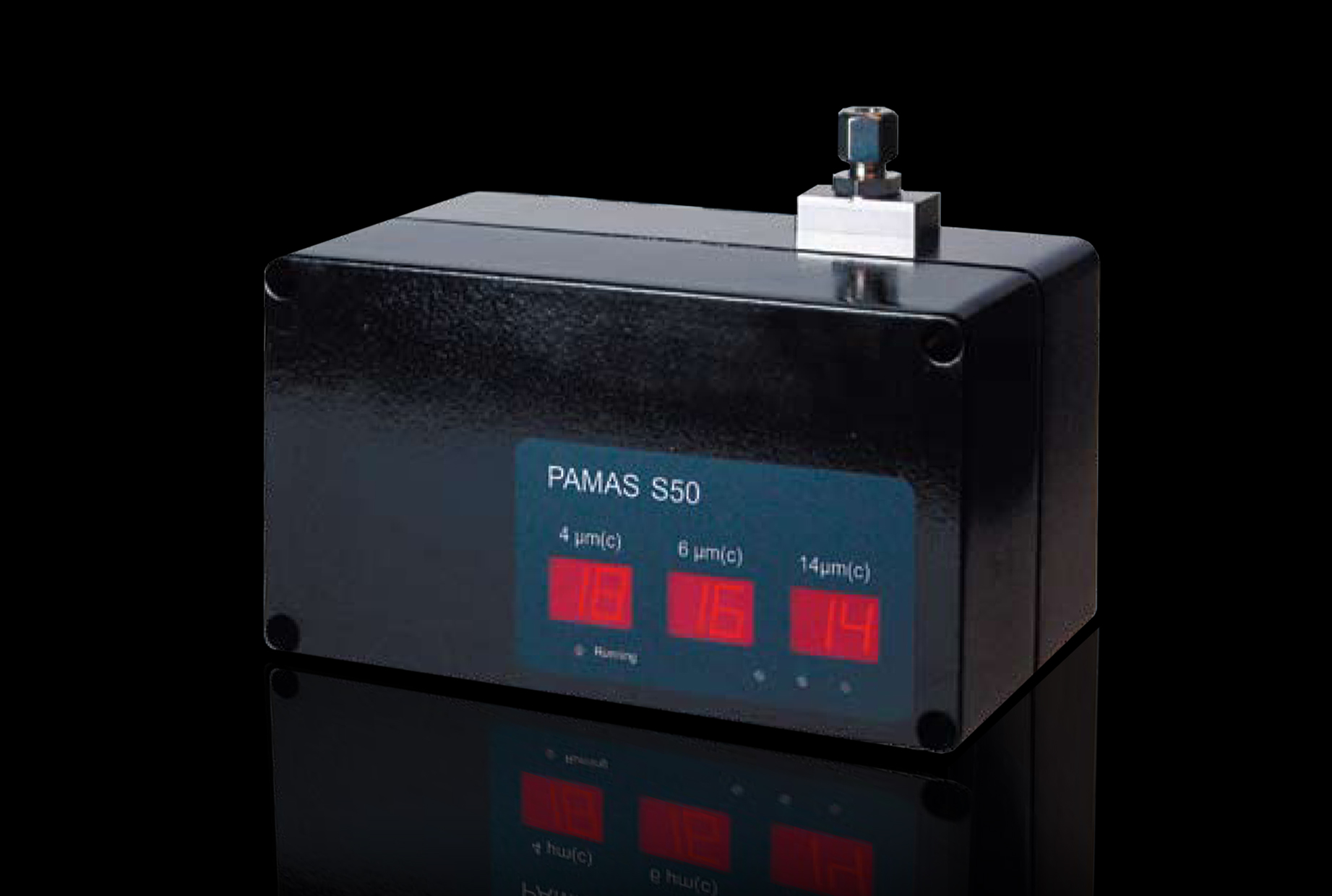

PAMAS-S50 Online Particle Counter
 분류 : 오염도분석기
 상품명 : PAMAS-S50 Online Particle Counter
 상품코드 : S50
 간략설명 : 유압유, 윤활유 측정용 Online Particle Counter
 제조사 : PAMAS
 제공방식 : 견적후발주
제품상세 정보
블릿아이콘 특징
    ◇ Recognise failures at an early stage and ensure production
    ◇ Sensitive detection gives shorter reaction times and more time to plan and
    perform repair service actions
    ◇ Condition Monitoring

블릿아이콘 규격
    ◇ 8-channel particle counter:
    4um(c), 6um(c), 10um(c), 14um(c), 21um(c), 25um(c), 38um(c) and 70um(c)
    ◇ Max. particle concentration: 20,000 p/ml at 25ml/min (5% coincidence)
    Measures from ISO class 0 - 22
    ◇ Controller: High performance digital signal conditioning and 32 bit CPU
    ◇ Max. Viscosity: 1000 cst (depending on system pressure)
    ◇ Flow rate: 5-50 ml/min
    ◇ Pressure range: 0.2 - 20 bar (option: 5-200 bar)
    ◇ Size: 220 W x 140 H x 120 D mm
    ◇ Weight: 3.7 kg
    ◇ Power consumption: 10W (24VDC)
